Custom Pipe Truss Fabrication | Tubular Truss Structures Made to Drawings
A pipe truss refers to a lattice structure composed of round rods connected to each other at the ends. It is mainly used for large-span spatial structures.
Category:
Contact Information
Email:hongjiaowang12@gmail.com
lizhongyang300@gmail.com
Product Overview
Custom Pipe Truss Fabrication

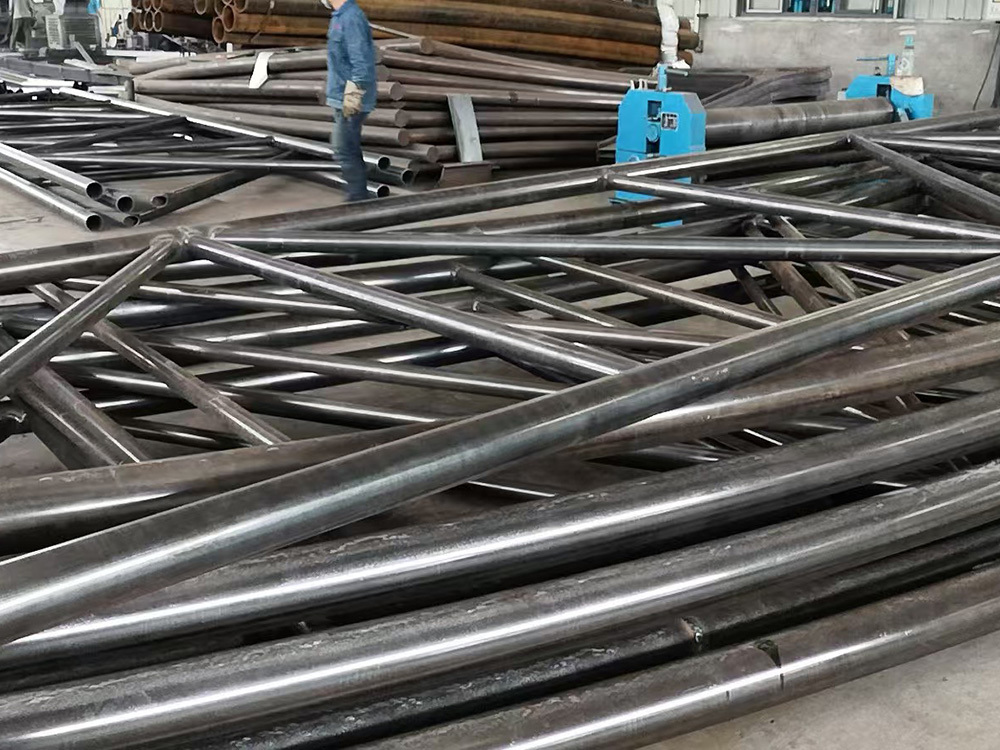

Pipe truss is a steel structural component assembled and welded from steel tubes. It features stable structure, large-span capability, flexible shapes and a clean appearance. Pipe trusses are widely used in steel buildings, membrane structure projects, stadium stands, carports, canopies, roof systems, landscape structures and various non-standard steel structure projects.
Henan Jingtian Membrane Structure Engineering Co., Ltd. provides customized pipe truss fabrication based on client drawings, dimensions, material requirements and project applications. Whether the project requires straight pipe trusses, curved pipe trusses, arched pipe trusses or special-shaped spatial trusses, we can fabricate the components according to the provided drawings.
Custom Fabrication Based on Drawings
Jingtian supports fabrication based on drawings, sketches, 3D models or basic dimensional requirements. We can customize the material, structural shape, component size, connection method, surface treatment and paint color according to project requirements.
Customization options include:
Pipe truss shape
Pipe truss style
Tube diameter and wall thickness
Steel material grade
Component size
Connection method
Surface treatment
Paint color
Segmentation for transportation
Materials and Structural Forms
Pipe trusses can be fabricated with different steel materials according to project requirements, such as Q235, Q355 and other specified steel grades. We review the drawings, application scenarios, material specifications and fabrication requirements before production to ensure that the finished pipe trusses meet the needs of installation and use.
Common structural forms include:
Triangular pipe truss
Rectangular pipe truss

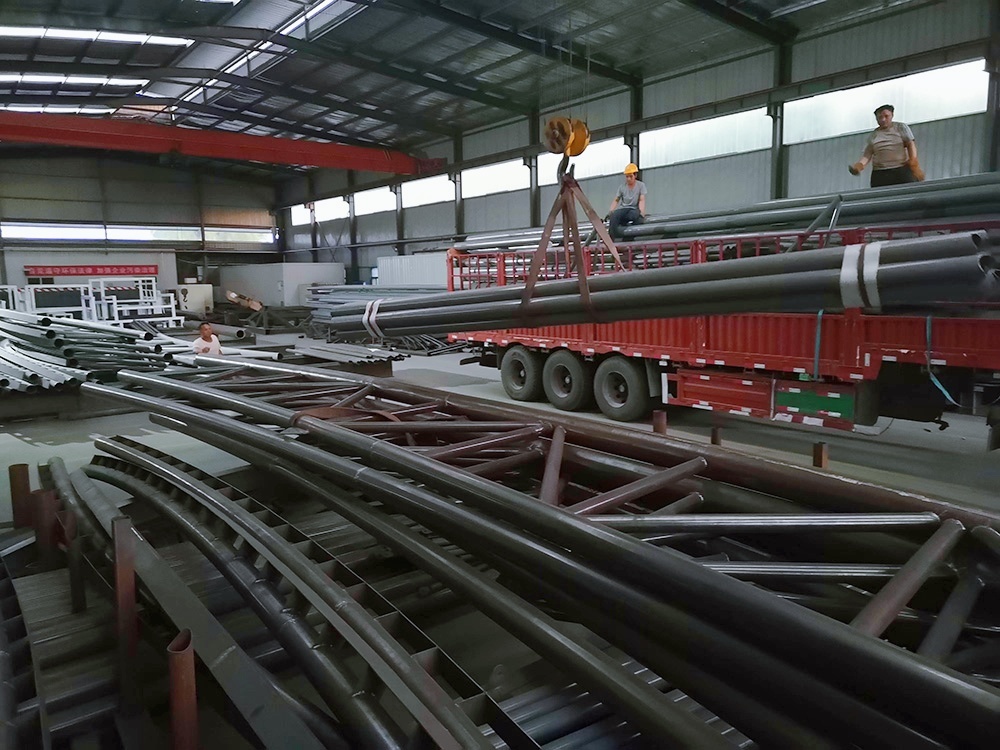

Curved pipe truss

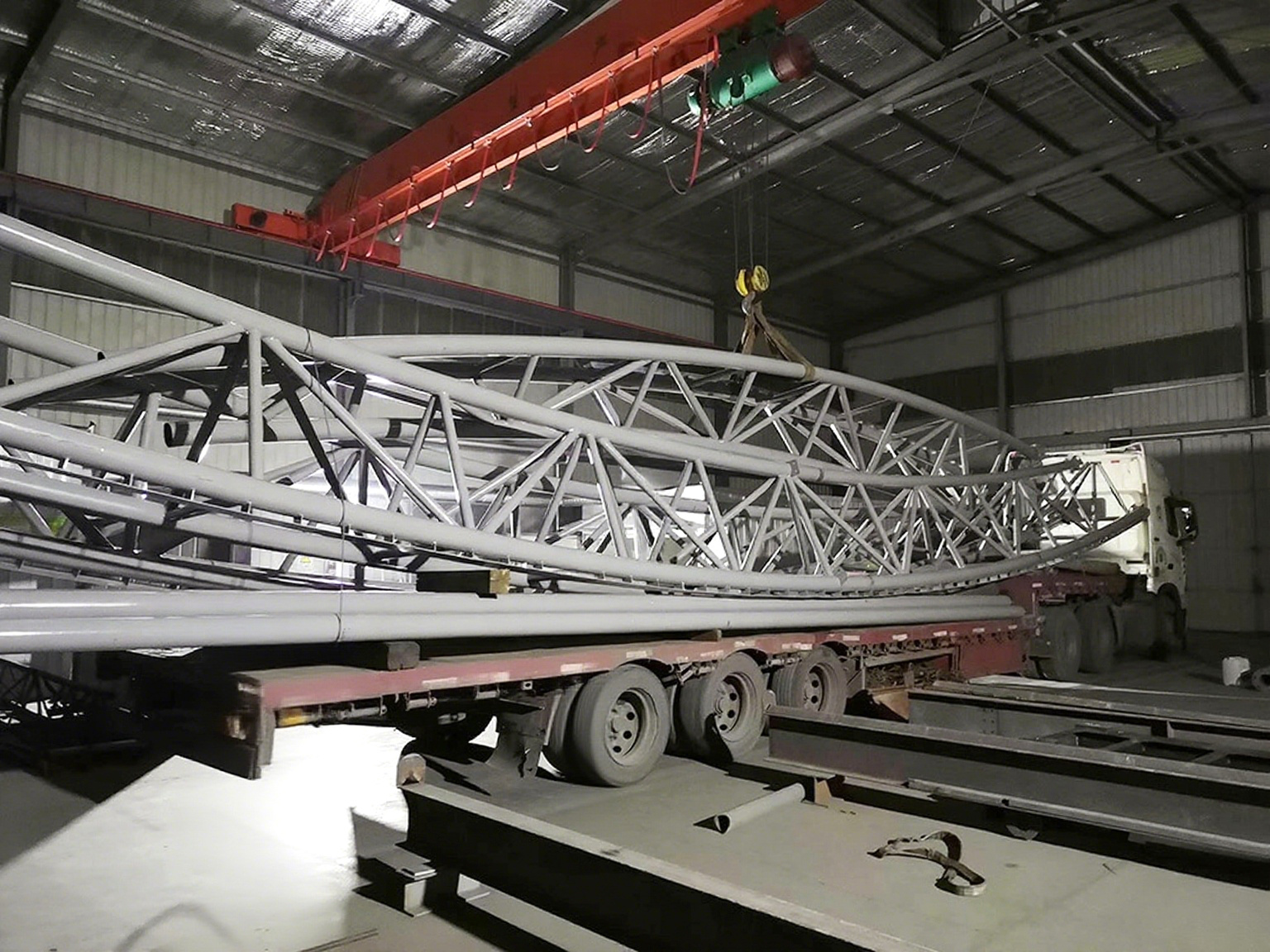

Arched pipe truss
Spatial pipe truss
Special-shaped pipe truss
Fabrication Process
1. Drawing Review
Before production, we review the drawings, dimensions, materials, welding requirements and surface treatment requirements to confirm all fabrication details.
2. Material Preparation
Steel tubes and related materials are prepared according to the drawings to ensure that size, thickness and material grade meet the project requirements.
3. Rust Removal
Rust, oil and impurities are removed from the steel surface to prepare for the following fabrication and surface treatment processes.
4. Tube Bending
For curved or arched pipe trusses, tube bending can be carried out according to the required radius and shape.

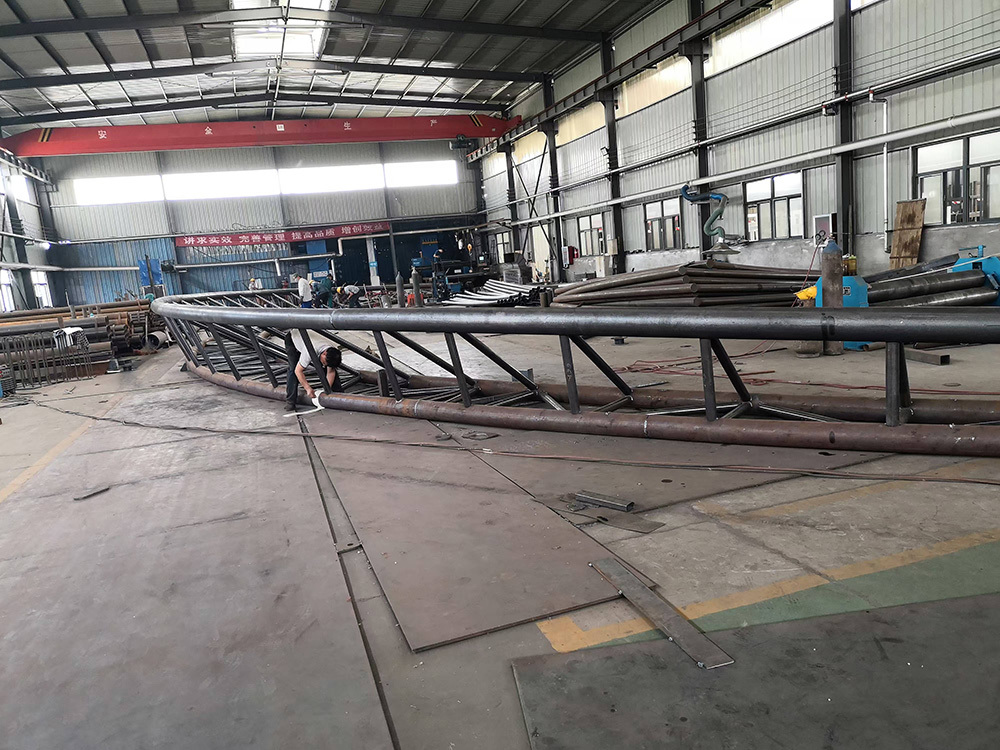

5. Assembly and Fitting
The processed tubes are fitted, aligned and assembled according to the drawing dimensions to ensure accurate structure and shape.
6. Welding
Welding is carried out according to the structural requirements to ensure strong connections and reliable performance.
7. Grinding
After welding, weld areas and component surfaces are ground to improve appearance and prepare for sandblasting and painting.
8. Sandblasting
Sandblasting further cleans the steel surface and improves paint adhesion.
9. Painting
Primer, finish coating or specified paint colors can be applied according to customer requirements to improve corrosion resistance and appearance.
10. Quality Inspection
Before delivery, dimensions, welds, surface treatment and overall appearance are inspected to ensure the finished products meet the drawings and project requirements.
Product Advantages
Henan Jingtian Membrane Structure Engineering Co., Ltd. has experience in pipe trusses, membrane structure steel frames, special-shaped steel structures and non-standard welded steel components. We provide flexible custom fabrication services for different project needs.
Our advantages include:
Custom fabrication based on drawings
Custom material selection
Custom pipe truss shapes and styles
Tube bending, fitting and welding capability
Complete rust removal, sandblasting and painting process
Suitable for non-standard steel structure fabrication
Quality inspection before delivery
Applications
Pipe trusses can be widely used in the following applications:
Steel structure roofs
Membrane structure support frames
Stadium stands
Carports and canopies
Landscape structures
Industrial buildings
Equipment support frames
Large-span steel structure projects
Special-shaped steel components
Inquiry Information
If you need custom pipe truss fabrication, please send us your drawings, material requirements, dimensions, surface treatment requirements and project application. Henan Jingtian Membrane Structure Engineering Co., Ltd. will provide a suitable pipe truss fabrication solution based on your project needs.
