Tube Intersection Line Cutting

Tube intersection line cutting is an important process in steel structure fabrication. It is mainly used for accurate cutting of steel pipes, round tubes, pipe truss components and various tubular connection nodes. With intersection line cutting, steel tubes of different angles and diameters can fit more accurately during assembly, reducing manual trimming and improving welding quality.

Henan Jingtian Membrane Structure Engineering Co., Ltd. is equipped with tube intersection line cutting machines and has professional nesting technicians. We can provide tube cutting layout and CNC processing according to client drawings. CNC-controlled cutting paths help reduce fabrication errors and improve component accuracy, providing a better foundation for fitting, welding and installation.

Custom Processing Based on Drawings

Jingtian supports intersection line cutting based on construction drawings, fabrication drawings, node drawings and pipe truss drawings. Before processing, we confirm tube specifications, cutting angles, node forms, hole positions and component numbers to ensure that the cut components are suitable for following assembly.

Available processing options include:

Steel pipe intersection line cutting
Round tube intersection line cutting
Pipe truss node cutting
Steel tube hole cutting
Bevel cutting
Special-shaped joint cutting
Multi-angle tube cutting
Tube cutting for membrane structure frames

Tube Intersection Line Cutting Machine

A tube intersection line cutting machine is suitable for accurate cutting of steel tube components, especially for pipe trusses, spatial steel structures, membrane structure frames, carport steel structures and special-shaped steel structure projects. Compared with traditional manual cutting, CNC intersection line cutting can better control cutting dimensions and joint shapes.

Main functions include:

Improving tube joint accuracy
Reducing manual trimming
Improving fitting and assembly efficiency
Improving weld joint fit-up
Suitable for complex-angle node processing
Suitable for batch tube component cutting
Reducing fabrication errors

Professional Nesting Technicians

In tube intersection line cutting, nesting is an important step that affects material utilization and processing accuracy. Jingtian has professional nesting technicians who can arrange cutting layouts according to drawings and component lists, reasonably planning cutting sequences and component numbers.

Professional nesting helps:

Optimize material utilization
Reduce material waste
Clarify component numbers
Improve processing efficiency
Reduce confusion during assembly
Make following fitting and installation easier

CNC Processing for Better Accuracy

Intersection line cutting uses CNC equipment to control the cutting path, cutting angle and cutting dimensions according to the drawings. Compared with manual cutting, CNC processing can keep errors within a smaller range and improve the consistency and accuracy of tube joints.

For pipe trusses, membrane structure frames and other projects requiring precise connection of multiple steel tubes, intersection line cutting can effectively improve fabrication quality and reduce adjustment work during assembly and welding.

Fabrication Process

1. Drawing Review

We review client drawings to confirm tube specifications, node forms, cutting angles, component quantities and processing requirements.

2. Nesting Design

Professional nesting technicians prepare cutting layouts according to the drawings and material specifications, reasonably planning material use and component numbers.

3. Data Input

The cutting data is entered into the tube intersection line cutting machine, and cutting paths and processing parameters are confirmed.

4. CNC Cutting

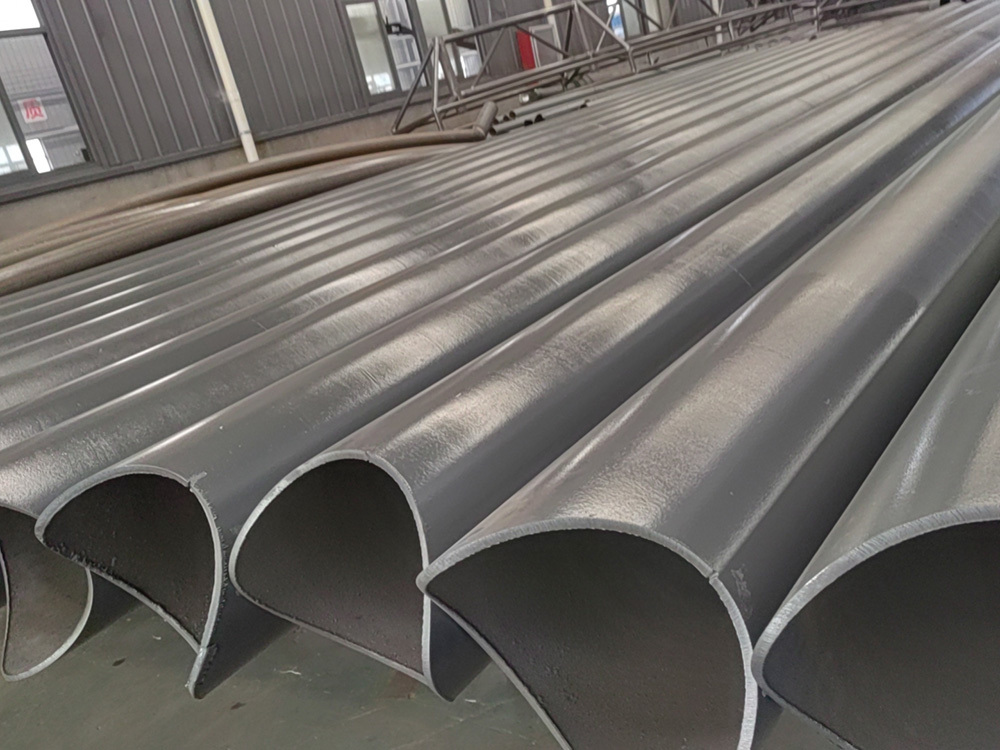

Steel tubes are cut by the intersection line cutting machine to complete bevel cuts, holes, arc cuts and intersecting joints.

5. Component Inspection

After cutting, tube dimensions, joint shapes, hole positions and component numbers are checked to ensure they meet drawing requirements.

6. Further Fabrication

The cut tube components can continue to the following processes, such as fitting, welding, grinding, sandblasting and painting.

Product Advantages

Henan Jingtian Membrane Structure Engineering Co., Ltd. has experience in steel structure fabrication and membrane structure frame processing. We provide tube intersection line cutting services for pipe trusses, carport steel structures, spatial steel structures and special-shaped steel structure projects.

Our advantages include:

Equipped with tube intersection line cutting machines
Professional nesting technicians
Custom cutting based on drawings
CNC processing for smaller fabrication errors
Suitable for pipe truss node cutting
Suitable for membrane structure frame tube cutting
Improves fitting and welding efficiency
Reduces manual trimming and material waste
Can be followed by welding, grinding, sandblasting and painting

Applications

Tube intersection line cutting can be widely used in:

Pipe truss fabrication
Membrane structure frame fabrication
Steel tube component fabrication
Carport steel structure fabrication
Spatial steel structure projects
Special-shaped steel structure projects
Round tube connection node processing
Stadium stand steel structures
Landscape steel structures
Non-standard steel component fabrication

Inquiry Information

If you need tube intersection line cutting services, please send us your drawings, tube specifications, component list, node requirements and project application. Henan Jingtian Membrane Structure Engineering Co., Ltd. will provide a suitable tube intersection line cutting solution based on your drawing requirements.
