Motor Vehicle Membrane Carport Beam and Column Structure

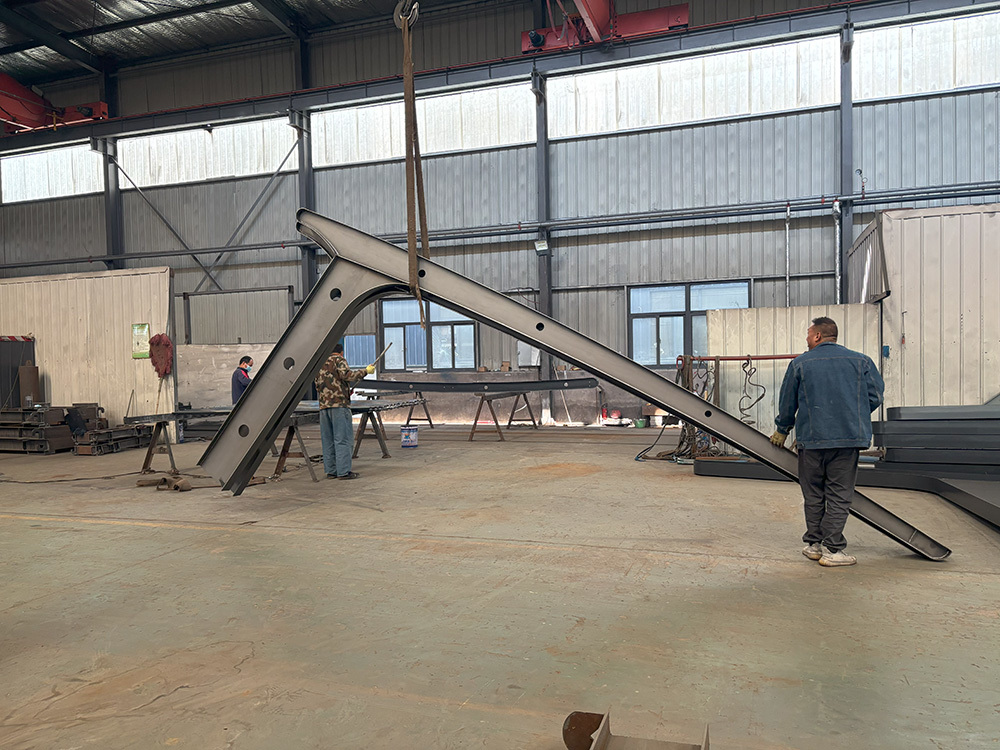

The beam and column structure of a motor vehicle membrane carport is the main load-bearing steel system for car parking shelters. It is usually composed of steel columns, steel beams, connection nodes, support components and base connection parts. The structure supports the membrane tensioning system and forms a stable shaded and rainproof parking space.

Henan Jingtian Membrane Structure Engineering Co., Ltd. provides custom fabrication for motor vehicle membrane carport beam and column structures based on client drawings, site dimensions, parking quantity, parking layout and material requirements. The product is suitable for residential parking lots, company parking areas, commercial plazas, schools, factories and public parking facilities.

Custom Fabrication Based on Drawings

Jingtian supports custom fabrication based on construction drawings, fabrication drawings, sketches or basic site dimensions. According to the carport span, column spacing, height, parking layout, membrane tensioning method and transportation conditions, we can fabricate suitable beam and column structures for different projects.

Customization options include:

Carport steel column size
Carport steel beam specification
Column spacing
Carport span
Carport height
Structural shape
Steel material grade
Connection method
Membrane connection nodes
Surface treatment
Paint color
Segmentation for transportation

Designed for Motor Vehicle Carports

Motor vehicle membrane carports are mainly used for car parking areas. They provide shade, sun protection and rain protection for vehicles. Compared with ordinary steel canopies, membrane carports have a lighter appearance and better visual effect, making them suitable for different parking environments.

Suitable places include:

Residential car parking shelters
Company parking carports
Factory parking shelters
School parking shelters
Commercial plaza carports
Public parking lot shelters
Office park carports
Scenic area parking shelters
Hotel parking carports
EV charging station carports

Welded and Bolted Structures Available

According to project requirements and transportation or installation conditions, motor vehicle membrane carport beam and column structures can be fabricated as welded structures or bolted connection structures.

Welded Structure

Welded structures provide strong overall integrity and are suitable for motor vehicle carport projects that require good stability and structural strength. Some components can be welded in the factory to reduce on-site processing and improve fabrication quality.

Bolted Connection Structure

Bolted structures are convenient for segmented transportation and on-site installation. They are suitable for long-distance delivery, export projects or sites with limited construction conditions. With proper connection node design, the components can be assembled efficiently on site.

Product Functions

The beam and column structure is used to support the whole membrane carport system. It is an important part that ensures the safety, stability and practical performance of the carport.

Main functions include:

Supporting the overall membrane carport shape
Carrying membrane tension
Resisting wind, rain and snow loads
Creating shaded parking space for cars
Providing rain and sun protection for vehicles
Adapting to different parking quantities and site dimensions
Making transportation, installation and maintenance easier

Fabrication Process

1. Drawing Review

We review the drawings and project requirements to confirm steel columns, steel beams, node plates, bolt hole positions, material specifications and surface treatment requirements.

2. Material Preparation

Steel pipes, profile steel, steel plates and connection parts are prepared according to the drawings to ensure that material specifications, thickness and grades meet project requirements.

3. Cutting and Processing

Steel materials are cut, drilled and beveled according to component dimensions to prepare for assembly and welding.

4. Assembly and Fitting

Steel beams, columns, node plates and support components are positioned, fitted and assembled according to drawing dimensions to ensure accurate component size and node location.

5. Welding

Required welding work is carried out to ensure firm connections and reliable structural performance.

6. Bolted Connection Node Processing

For bolted products, connection plates, bolt holes and assembly nodes are processed according to the drawings for convenient on-site installation.

7. Grinding

Welds, edges and component surfaces are ground to improve appearance and prepare for sandblasting and painting.

8. Sandblasting and Rust Removal

The steel surface is cleaned by sandblasting or rust removal to improve paint adhesion and corrosion resistance.

9. Painting

Primer, finish coating or specified paint colors can be applied according to customer requirements to improve corrosion resistance and appearance.

10. Quality Inspection

Before delivery, component dimensions, weld quality, bolt hole accuracy, surface treatment and overall appearance are inspected to ensure the products meet drawings and project requirements.

Product Advantages

Henan Jingtian Membrane Structure Engineering Co., Ltd. has experience in membrane carport and steel structure fabrication. We can provide customized fabrication services for different motor vehicle parking applications.

Our advantages include:

Custom fabrication based on drawings
Suitable for motor vehicle carport projects
Customizable according to parking quantity
Welded structure available
Bolted connection structure available
Convenient for transportation and on-site installation
Membrane tensioning connection nodes can be fabricated
Suitable for residential, factory, school and commercial parking areas
Surface treatment available, including rust removal, sandblasting and painting
Quality inspection before delivery

Applications

Motor vehicle membrane carport beam and column structures can be widely used in:

Car parking canopies
Residential parking lot shelters
Company parking carports
School parking shelters
Factory parking shelters
Commercial plaza carports
Office park parking shelters
Public parking lot carports
EV charging station carports
Membrane sunshade and rain shelters

Inquiry Information

If you need custom fabrication for motor vehicle membrane carport beam and column structures, please send us your drawings, parking quantity, site dimensions, material requirements, connection method and surface treatment requirements. Henan Jingtian Membrane Structure Engineering Co., Ltd. will provide a suitable fabrication solution based on your project needs.
