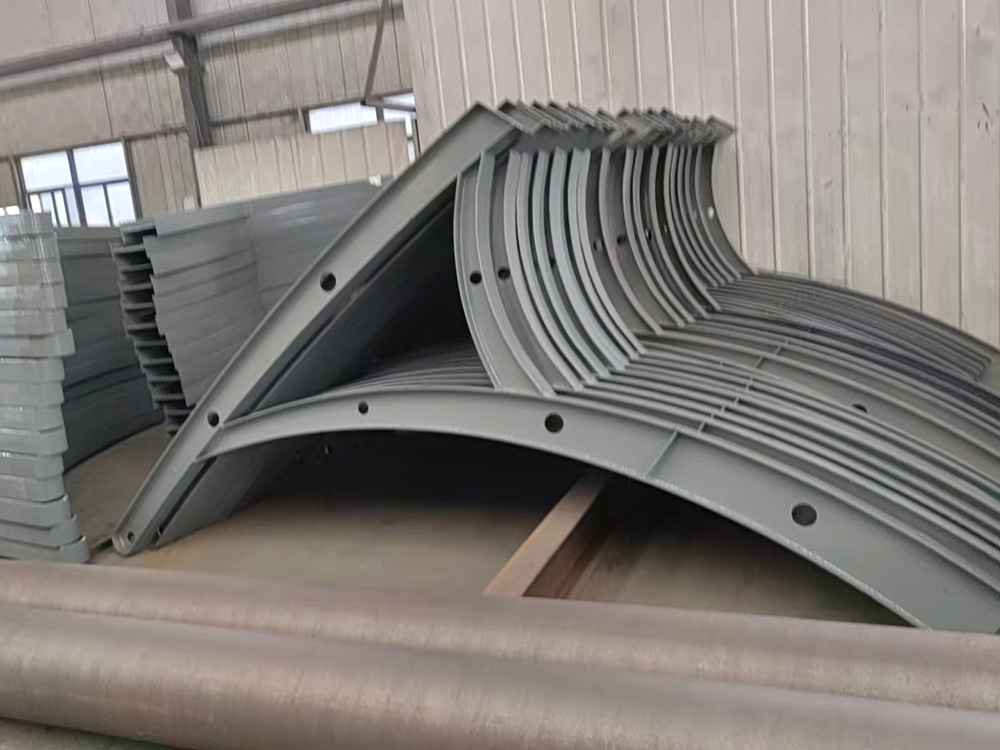

Membrane Structure Carport Beam and Column Structure

The beam and column structure is an important supporting part of a membrane structure carport. It is mainly composed of steel beams, steel columns, connection plates and related support components. It is used to carry membrane tension, wind load, rain load, snow load and the overall structural force of the carport.

Henan Jingtian Membrane Structure Engineering Co., Ltd. provides customized fabrication for membrane structure carport beam and column systems based on client drawings, dimensions, material requirements and project applications. The products can be used for bicycle shelters, motorcycle shelters, electric bike shelters and car parking canopies, providing a shaded and rainproof parking space.

Custom Fabrication Based on Drawings

Jingtian supports custom fabrication based on construction drawings, fabrication drawings, sketches or basic dimensional requirements. According to the carport span, height, column spacing, membrane tensioning method, installation environment and transportation conditions, we can fabricate suitable beam and column structures for different projects.

Customization options include:

Carport beam and column size
Steel beam specification
Steel column specification
Steel material grade
Carport span
Column spacing
Structural shape
Connection method
Surface treatment
Paint color
Segmentation for transportation

Welded Structure and Bolted Structure Available

According to different project requirements, the beam and column structure of membrane carports can be fabricated as welded structures or bolted connection structures.

Welded Structure

Welded structures provide strong overall integrity and are suitable for carport projects that require good structural stability, strength and continuous appearance. After factory welding, the components can be transported as a whole or in sections according to project conditions.

Bolted Connection Structure

Bolted structures are easier to split, transport and install on site. They are suitable for projects requiring segmented delivery, long-distance transportation or on-site assembly. With proper connection node design, bolted structures can improve transportation convenience and installation efficiency.

Suitable Carport Types

The beam and column structure can be used for different parking shelter applications, including non-motor vehicle shelters and motor vehicle carports.

Non-Motor Vehicle Shelter

Suitable for electric bikes, bicycles, motorcycles and other non-motor vehicles. It can be used in schools, communities, factories, office parks and commercial areas to provide sunshade and rain protection.

Motor Vehicle Carport

Suitable for car parking spaces, company parking lots, residential parking areas and public parking lots. The structure can be customized according to parking quantity, parking direction and site dimensions to provide rain and sun protection for vehicles.

Product Function

The beam and column structure is not only the load-bearing frame of the carport, but also a key part that affects the appearance and stability of the whole structure. A properly designed and fabricated beam-column system helps the carport achieve good load-bearing capacity, stability and space utilization.

Main functions include:

Supporting the overall carport shape
Carrying membrane tension
Improving structural stability
Providing shaded parking space
Providing rain protection
Adapting to different parking site dimensions
Making transportation and installation easier

Fabrication Process

1. Drawing Review

We review the drawings to confirm beam and column dimensions, material specifications, connection details, welding requirements and surface treatment requirements.

2. Material Preparation

Steel pipes, profile steel, steel plates and connection parts are prepared according to the drawings to ensure that material specifications meet project requirements.

3. Cutting and Processing

Steel materials are cut, drilled and beveled according to the design dimensions to prepare for assembly and connection.

4. Assembly and Fitting

Steel beams, columns and connection parts are fitted and assembled according to the drawing dimensions to ensure accurate structure and node positions.

5. Welding or Bolted Connection Processing

Welding is carried out according to project requirements, or bolted connection nodes are fabricated for on-site assembly.

6. Grinding

Welds, edges and component surfaces are ground to improve appearance and coating quality.

7. Sandblasting and Rust Removal

The steel surface is cleaned by sandblasting or rust removal to improve paint adhesion and corrosion resistance.

8. Painting

Primer, finish coating or specified paint colors can be applied according to customer requirements to improve corrosion resistance and appearance.

9. Quality Inspection

Before delivery, component dimensions, weld quality, bolt hole positions, surface treatment and overall appearance are inspected to ensure the products meet drawings and project requirements.

Product Advantages

Henan Jingtian Membrane Structure Engineering Co., Ltd. has experience in membrane structure carports, steel structure fabrication and non-standard steel components. We provide flexible custom fabrication services for different project needs.

Our advantages include:

Custom fabrication based on drawings
Suitable for non-motor vehicle shelters and motor vehicle carports
Welded structure available
Bolted connection structure available
Convenient for transportation and on-site installation
Customizable according to carport span and column spacing
Can be fabricated with membrane structure design requirements
Surface treatment available, including rust removal, sandblasting and painting
Quality inspection before delivery

Applications

Membrane structure carport beam and column structures can be widely used in:

School bicycle shelters
Residential electric bike shelters
Factory parking shelters
Office park carports
Commercial plaza carports
Car parking canopies
Public parking lot shelters
Residential motor vehicle carports
Membrane sunshade structures
Membrane rain shelters

Inquiry Information

If you need custom fabrication for membrane structure carport beam and column structures, please send us your drawings, dimensions, carport type, material requirements, connection method and surface treatment requirements. Henan Jingtian Membrane Structure Engineering Co., Ltd. will provide a suitable fabrication solution based on your project needs.
