Rooftop Cantilever Membrane Canopy Project

Project Background

This project involved the construction of a new membrane canopy on the rooftop of an existing building. The client wanted to add an outward-extending canopy to provide sunshade, rain protection, and improved building functionality.

The building is approximately 15 meters high, and the planned canopy was designed to extend outward by about 6 meters. Because the canopy was located on the rooftop and had a relatively long cantilever length, structural safety and installation feasibility were key concerns for this project.

Site Investigation and Structural Assessment

At the early stage of the project, the design team from Henan Jingtian Membrane Structure Engineering Co., Ltd.visited the site to inspect the building structure, wall conditions, rooftop space, and possible load-bearing positions.

The client initially hoped to complete the rooftop canopy without adding new load-bearing components. However, after the site investigation, Jingtian’s designers found that the existing wall surface did not provide suitable support points for the 6-meter cantilever canopy.

To ensure long-term safety, the project did not use a simple wall-fixed solution. Instead, a new independent load-bearing structure was designed on the rooftop.

Structural Design Solution

Based on the site conditions, Jingtian added pipe truss load-bearing columns at 6-meter intervals on the rooftop. These columns served as the main supporting structure for the canopy.

After the columns were installed, horizontal pipe truss beams were erected on top of them to form a stable rooftop canopy support system. The combination of pipe truss columns and horizontal pipe truss beams created a clear load transfer path and provided better structural stability for the 6-meter cantilever canopy.

This solution solved the problem of insufficient wall support and made the rooftop canopy structurally feasible.

Project Information

Materials and Workmanship

The membrane material used in this project is 1050 model membrane material, suitable for outdoor membrane canopy applications. It provides sunshade, rain protection, and weather resistance for daily use.

The steel structure is made of Q235 steel. Since the canopy is located on the rooftop and exposed to outdoor weather conditions, the steel surface was treated with primer and topcoat to improve corrosion resistance and maintain a clean appearance.

The pipe truss structure provides better spatial stability than ordinary single beams or columns, making it suitable for canopy projects with larger spans or longer extensions.

On-Site Installation

The total construction period was about 15 days. Because the building height was approximately 15 meters and the steel components were relatively large, lifting equipment was used during installation.

Key construction steps included:

• Positioning the new rooftop load-bearing columns;
• Installing pipe truss columns;
• Lifting and installing horizontal pipe truss beams;
• Adjusting and connecting the steel structure;
• Installing and tensioning the membrane material;
• Checking the final structural and appearance details.

Due to the rooftop working environment, construction safety, lifting coordination, and installation accuracy were carefully controlled throughout the process.

Completion Result

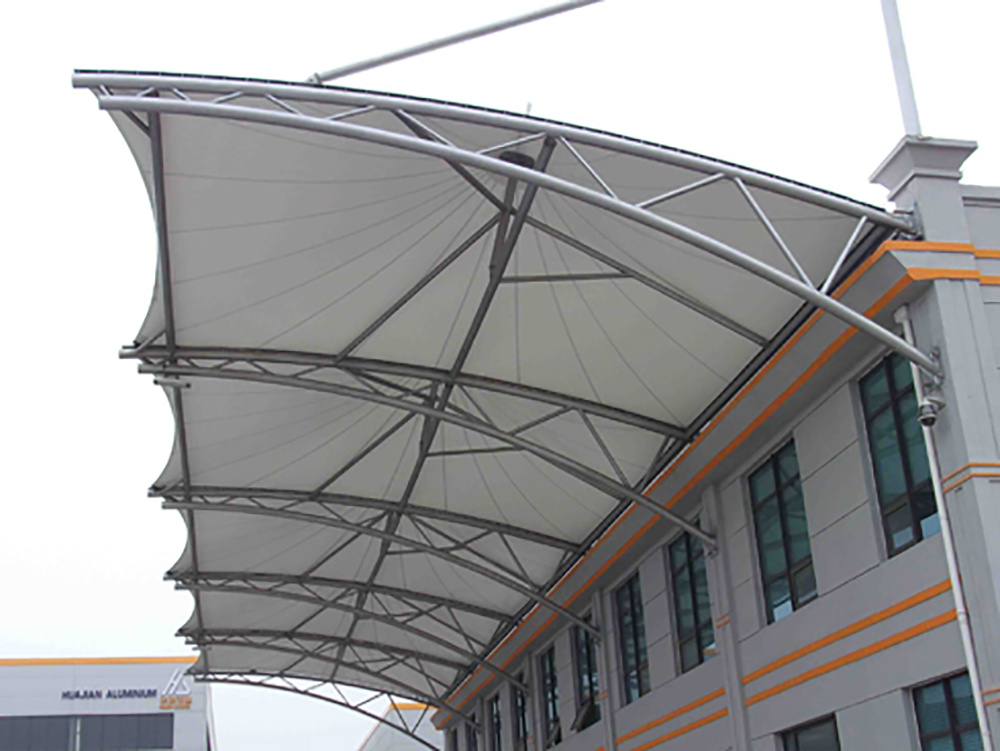

After completion, the building gained a functional rooftop membrane canopy extending outward by about 6 meters. The canopy provides effective sunshade and rain protection while solving the structural issue caused by the lack of suitable wall support points.

The final structure is stable, practical, and visually clean, meeting the client’s requirements for improving the rooftop building space.

Jingtian Service

This project demonstrates that a membrane canopy project is not only about installation, but also about structural assessment and practical solution design.

Henan Jingtian Membrane Structure Engineering Co., Ltd. provides design, fabrication, and installation services for membrane canopies, steel structure canopies, rooftop shelters, pipe truss structures, carports, and walkway canopies. Jingtian can provide customized solutions based on building height, support conditions, canopy extension, site environment, and project requirements.

FAQ

1. Can a rooftop cantilever membrane canopy be fixed directly to the wall?

Not always. It depends on the existing building structure, wall condition, load-bearing capacity, and canopy extension length. If the wall does not provide suitable support points, a direct wall-fixed solution is not recommended.

2. Why were pipe truss load-bearing columns added in this project?

The site investigation showed that the existing wall did not have suitable support points for the 6-meter cantilever canopy. Therefore, Jingtian added pipe truss columns on the rooftop and built horizontal pipe truss beams on them to create a stable independent support system.

3. Is a 6-meter cantilever canopy difficult to build?

Compared with small ordinary canopies, a 6-meter cantilever canopy requires more attention to structural stability, wind resistance, connection details, and load transfer.

4. Why was lifting installation used?

The building is about 15 meters high, and the steel components were relatively large. Lifting equipment helped improve installation efficiency and construction safety.

5. Is a pipe truss structure suitable for rooftop canopies?

Yes. Pipe truss structures offer good spatial stability and are suitable for larger-span canopies, cantilever shelters, walkway covers, and other outdoor steel structure projects.

6. Can the membrane canopy be customized?

Yes. Jingtian can customize the canopy span, extension length, structure type, membrane material, color, and installation method according to actual site conditions.
