Case Overview
Talent Building Non-Motor Vehicle Membrane Carport Project
Project Overview

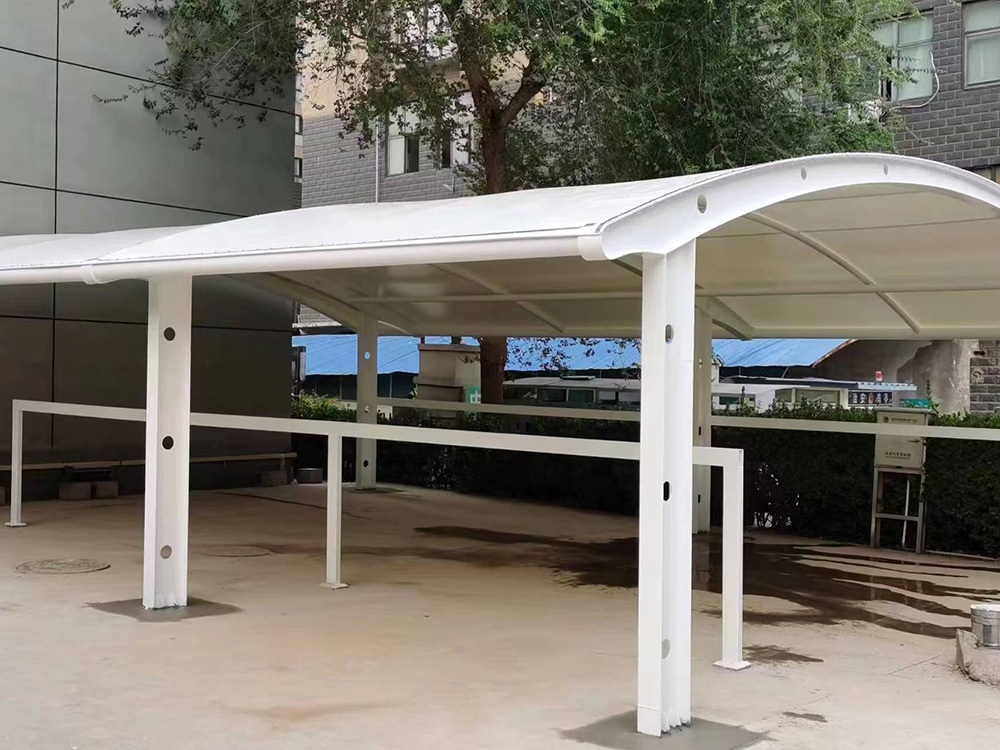

This project is a non-motor vehicle membrane carport built for Talent Building. It is mainly used for parking electric bikes, bicycles, and other non-motor vehicles in an office building area.
The carport covers approximately 72 square meters, with a span of about 6 meters and a length of about 12 meters. Based on the actual site requirements, a charging pole was installed in the middle of the carport to make daily charging more convenient for users.
The project provides sunshade, rain protection, parking, and charging functions, while also improving the appearance and usability of the outdoor parking area.
Project Information
| Item | Details |
|---|---|
| Project Name | Talent Building Non-Motor Vehicle Membrane Carport |
| Project Area | About 72㎡ |
| Size | About 6m span and 12m length |
| Application | Office building non-motor vehicle parking area |
| Main Functions | Parking, sunshade, rain protection, charging |
| Charging Facility | Charging pole installed in the center |
| Membrane Material | 1050 model membrane from a well-known domestic brand |
| Membrane Warranty | 10-year manufacturer warranty |
| Steel Material | Q235 steel |
| Surface Treatment | Epoxy primer + fluorocarbon topcoat |
| Overall Appearance | Refined, elegant, and well-detailed |
Project Requirements and Solution
Talent Building has a relatively concentrated demand for non-motor vehicle parking. In open-air parking areas, electric bikes and bicycles are easily affected by rain and direct sunlight, especially during hot summers and rainy days.
To improve the parking environment, Henan Jingtian Membrane Structure Engineering Co., Ltd. designed and built a customized membrane carport according to the site size and functional requirements.
The 6-meter span provides enough space for vehicle parking and daily access, while the 12-meter length offers an appropriate covered area for the parking zone. The charging pole installed in the center combines parking and charging functions in one place, making the area more practical and easier to manage.
Materials and Workmanship
The membrane material used in this project is a 1050 model membrane from a well-known domestic brand, with a 10-year manufacturer warranty. It is suitable for outdoor carport applications and provides good sunshade, rain protection, and weather resistance.
The steel structure is made of Q235 steel, a commonly used material for membrane carport frames. After fabrication, the steel surface was treated with epoxy primer and fluorocarbon topcoat. The epoxy primer helps improve corrosion resistance, while the fluorocarbon topcoat provides better weather durability and a clean appearance.
The material selection and surface treatment were designed to support long-term outdoor use.
Project Highlights
Although this project is not large in area, it has complete practical functions. The carport meets the needs of non-motor vehicle parking and also provides a convenient charging area through the central charging pole.
The membrane structure gives the carport a light and elegant appearance. Compared with ordinary metal sheet shelters, this type of membrane carport is more suitable for office buildings and public areas where both function and appearance are important.
Jingtian paid attention to structural stability, anti-corrosion treatment, membrane tensioning, and overall detail control to ensure a practical and visually refined result.
Jingtian Service
Henan Jingtian Membrane Structure Engineering Co., Ltd. provides customized design, fabrication, and installation services for membrane structure carports. We can customize non-motor vehicle carports, electric bike charging carports, office building parking shelters, school carports, community carports, and industrial park parking shelters according to site conditions and project requirements.
Clients can provide site dimensions, drawings, or usage requirements, and Jingtian can support project communication, preliminary solution planning, and budget evaluation.
FAQ
1. Can a charging pole be installed in a membrane carport?
Yes. In this project, a charging pole was installed in the center of the carport for convenient electric bike charging. The position can be arranged according to the parking layout and power supply conditions.
2. What type of site is a 72㎡ carport suitable for?
A 72㎡ membrane carport is suitable for office buildings, industrial parks, schools, residential communities, factories, and other small to medium-sized non-motor vehicle parking areas.
3. How long is the membrane material warranty?
The project uses a 1050 model membrane from a well-known domestic brand, with a 10-year manufacturer warranty. Actual service life may vary depending on climate, installation quality, and maintenance.
4. Is Q235 steel suitable for membrane carport structures?
Yes. Q235 steel has good fabrication performance and structural stability, making it suitable for the main frame of membrane structure carports.
5. Why use epoxy primer and fluorocarbon topcoat?
Epoxy primer helps improve corrosion resistance, while fluorocarbon topcoat provides better outdoor weather resistance and appearance. This coating system helps extend the service life of the steel structure.
6. Can the membrane carport size be customized?
Yes. The span, length, height, shape, color, membrane material, and charging facility position can all be customized according to actual site conditions.
